DIMENSIONS
SIZE UP YOUR MINI.
Knowing every inch of your car is the best way to street-smart driving. Check out the exact dimensions of the all-electric MINI Aceman below – so you know just what to expect when you’re behind the wheel.

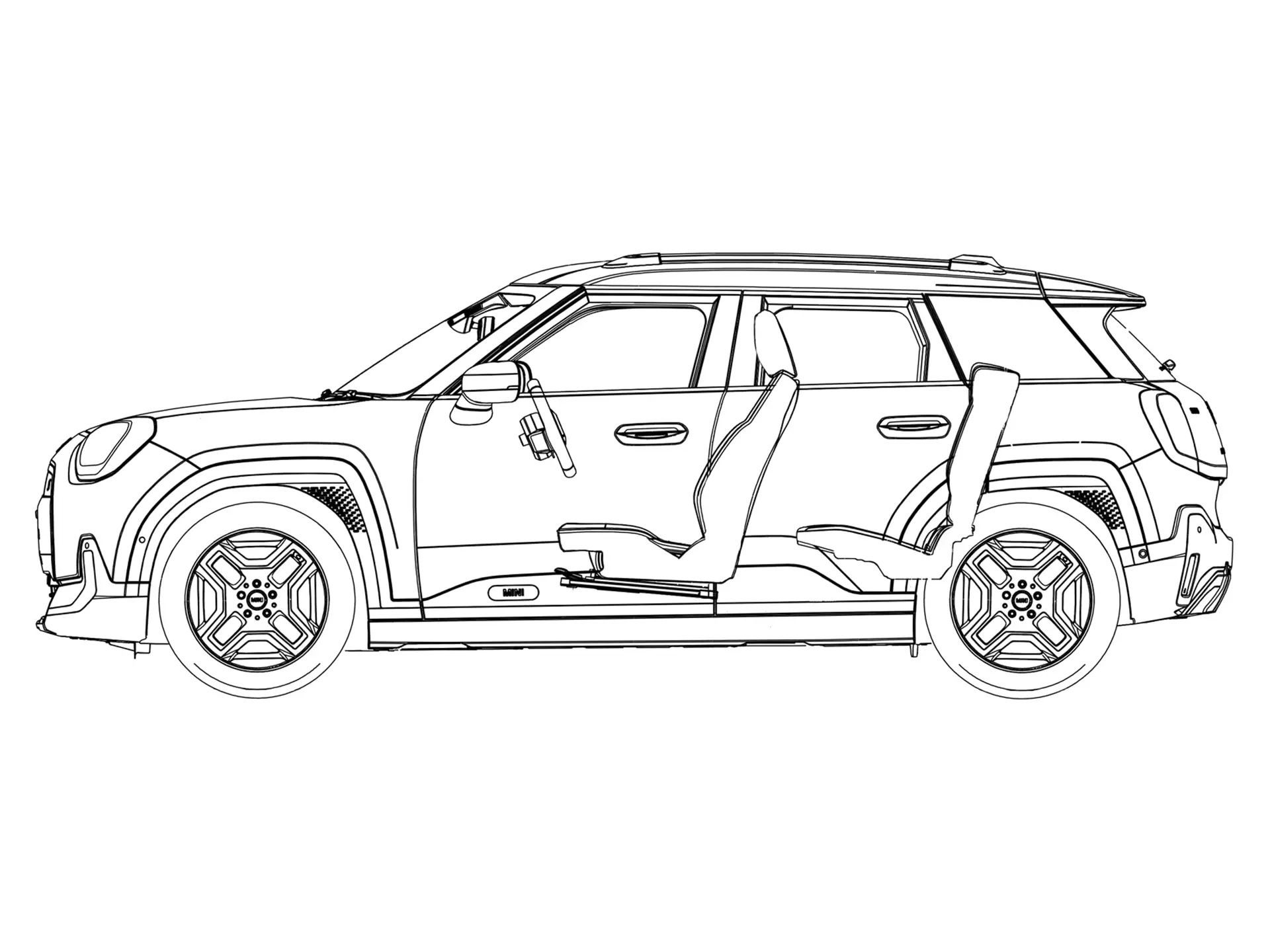

EXTERIOR.
| (A) Wheelbase | 2,606 mm |
|
(B) Vehicle length |
4,079 mm |
|
(C) Overhang length, front |
756 mm |
|
(D) Overhang length, rear |
717 mm |
|
(E) Track width, front |
1,521 mm |
|
(F) Track width, rear |
1,522 mm |
|
(G) Vehicle width |
1,754 mm |
|
(H) Vehicle width included external mirrors |
1,991 mm |
|
(I) Vehicle height (with standard installed parts) |
1,514 mm |
|
Turning circle diameter |
11.1 m |
INTERIOR.
| Effective leg room, front |
1,045 mm |
|
Effective leg room, rear (design position) |
822 mm |
|
Shoulder room, front |
1,330 mm |
|
Shoulder room, rear |
1,268 mm |
|
Elbow room, front |
1,370 mm |
|
Elbow room, rear |
1,338 mm |
|
Head room panoramic glass sunroof, front |
1,003 mm |
|
Head room panoramic glass sunroof, rear |
958 mm |
|
Head room normal roof, front (com. value) |
1,036 mm |
|
Head room normal roof, rear (com. value) |
973 mm |
TRUNK.
|
Luggage compartment floor length (2nd seat row) |
606 mm |
|
Smallest loading opening |
649 mm |
|
Largest luggage compartment width |
950 mm |
|
Smallest luggage compartment width |
909 mm |
|
Width of tailgate - top |
846 mm |
|
Width of tailgate - bottom |
951 mm |
|
Height of loading opening |
529 mm |
|
Luggage compartment height |
364 mm |
|
Loading edge height |
781 mm |
